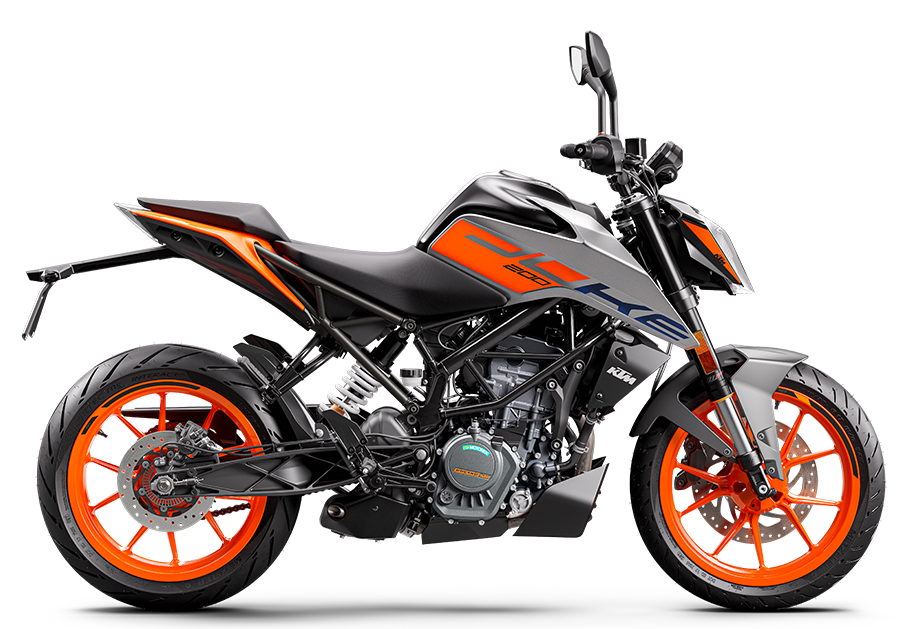

200 Duke 2024
200 DUKE 2024 for Sale at Virginia KTM in Virginia, QLD | Review Specifications, Features & Information
Thanks to an ultra-compact single-cylinder 4-stroke power plant and a lightweight tubular chassis, the KTM 200 DUKE packs a mighty punch. An updated predatory design proudly displays its BEAST-inspired DNA and shouts DUKE. Make no mistake - the KTM 200 DUKE is an out-and-out street prowling brawler.

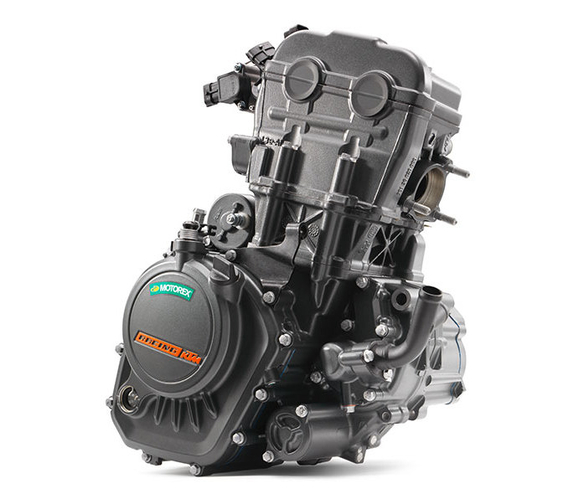

Engine
Powered by a powerful single-cylinder engine, the KTM 200 DUKE not only delivers intoxicating acceleration but also everyday rideability. Boasting 19 kW (26 hp), it's the most powerful 4-stroke option in its class. Thanks to an updated airbox and exhaust, it meets the highest emission and noise standards, while providing maximum performance.
Cylinder head
Just like the 1290 SUPER DUKE R, the four valves in the cylinder head of the KTM 200 DUKE are actuated by two overhead camshafts and ultra-hard, carbon coated cam followers. The result is an ultra-reliable, long-lasting engine that produces next-level power.
Injection
The intricate engine design, state-of-the-art injection electronics and close-ratio, 6-speed transmission not only help the KTM 200 DUKE to achieve white-knuckle performance, but also extremely low fuel consumption. At the same time, thanks to the regulated catalytic converter, it produces minimal emissions, even when riding at full throttle.
Exhaust
The KTM 200 DUKE's lightweight and precision-crafted exhaust system comprises of a side exhaust, link pipe and silencer. The three-chamber silencer has been positioned close to the bike’s overall center of gravity, improving balance and handling, whilst also delivering smooth, instant and beast-like power. Oh, and it looks angry as hell too.
Upside-down fork
The KTM 200 DUKE comes with ultra-lightweight, high-performance upside-down WP forks as standard. Using the latest technology, these forks not only perform flawlessly when pushed to the limit, but also allow riders to cruise comfortably on longer stretches of tarmac.
Wheels
17-inch cast alloy racing wheels help you put the power down with confidence. Utilizing a 110 mm wide tire at the front and an impressive 150 mm at the rear, this pro-spec wheel and tire combination will keep your KTM 200 DUKE glued to the road.
Brakes
A high-tech BYBRE braking system works in perfect harmony with the advanced ABS, providing riders with firm, controlled stopping power when they need it most. Thanks to a 300 mm brake disc on the front, paired with a 230 mm disc on the rear, the KTM 200 DUKE stops as quickly as it takes off.
Fuel tank
The innovative and ergonomic 13.4 liter steel fuel tank not only provides riders with perfect knee contact for attacking every corner, but also with an unbelievably long range, even when you ride as fast as you dare all day long.
Design
There's no denying the KTM 200 DUKE is 100% DUKE. Its aggressive-looking headlight, READY TO RACE stance and sharp lines make it a formidable presence on any street.
Headlight
A new headlight gives the KTM 200 DUKE a menacing look. Not only does it look ultra-mean, its practical too, producing outstanding visibility for riding in low light or dark conditions.
Engine
-
Torque
19.5 Nm
-
Transmission
6-speed
-
Battery capacity
8 Ah
-
Cooling
Liquid cooled
-
Power
26 PS
-
Starter
Electric starter
-
Stroke
49 mm
-
Bore
72 mm
-
Clutch
Wet multi-disc clutch, mechanically actuated
-
Compression ratio
11.5
-
Displacement
199.5 cm³
-
EMS
Bosch EMS
-
Engine oil
Motorex Formula 4T 15W/50
-
Design
1-cylinder, 4-stroke engine
-
Fuel-mixture generation
Bosch EFI (throttle valve 38 mm)
-
Lubrication
Wet sump
Chassis
-
Brake disc diameters (front/rear)
300 / 230 mm
-
Front brake disc diameter
300 mm
-
Rear brake disc diameter
230 mm
-
Rear brake
Single-piston floating calliper
-
Chain
520 X-Ring
-
Frame design
Steel trellis frame, powder coated
-
Front suspension
WP APEX 43
-
Rear suspension
WP shock absorber
-
Seat height
830 mm
-
Rear subframe design
Steel trellis frame, powder coated
-
Suspension travel (front)
142 mm
-
Suspension travel (rear)
150 mm
The illustrated vehicles may vary in selected details from the production models and some illustrations feature optional equipment available at additional cost.
All information concerning the scope of supply, appearance, services, dimensions and weights is non-binding and specified with the proviso that mistakes, printing, setting and typing errors may occur; such information is subject to change without notice.
